Head Restraint Systems

Brick wall system
Product Code
Hole Dia. (mm)
Mount Plate
Stem Size (mm)
Step Length

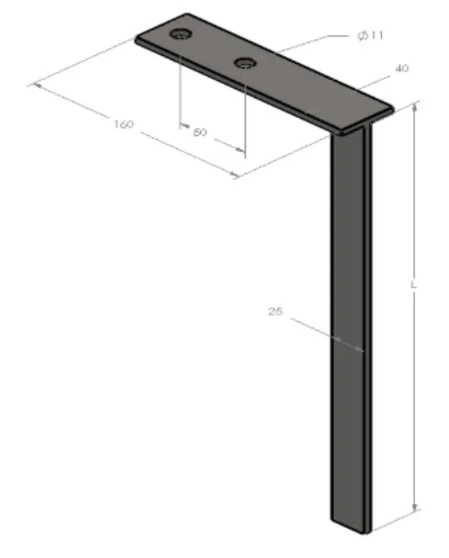

HRS-UO-L
11
150x40x5
25x5xL
350-1000

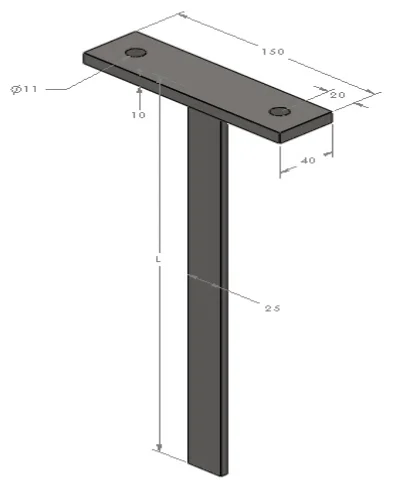

HRS-UT-L
11
150x40x5
25x5xL
350-1000

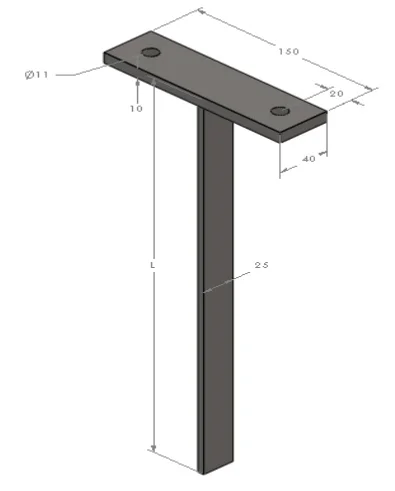

HRS-UC-L
11
150x40x5
25x5xL
350-1000

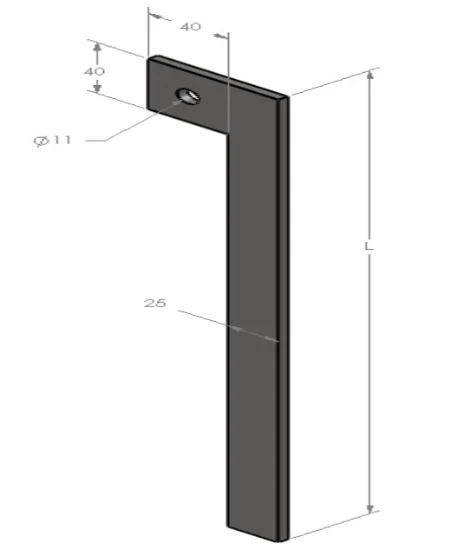

HRS-U-L
11
25x40x5
25x5xL
350-1000

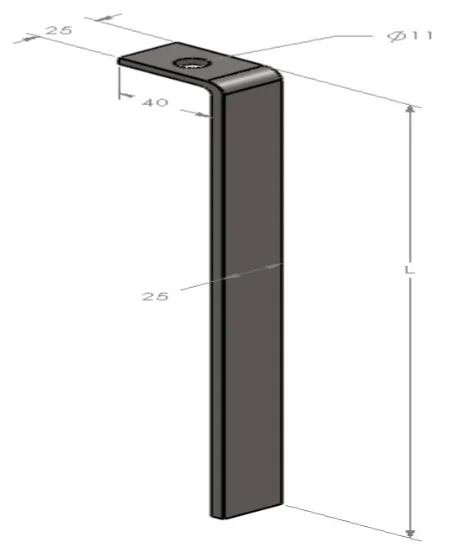

HRS-UF-L
11
40x40x5
25x5xL
350-1000
Other sizes available on request.
When order use the code and then add the length required to the end of the code  eg. HRS-UO-350 or SIS-150
Product Code
Tie Size (mm)
Length (mm)

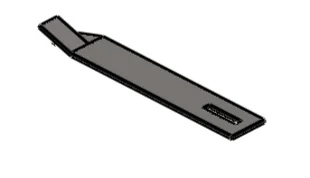

SIS-L25x2.5xL100/125/150/150/200

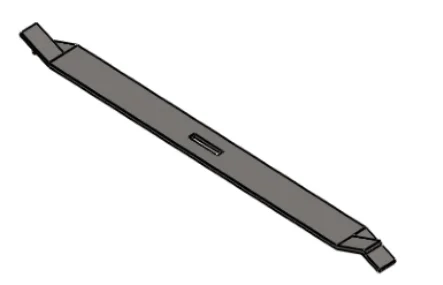

SPI-L25x2.5xL200/225/250
Head restraint sliding anchors have stem which fit within the cavity and   accept ties that slide to accommodate  vertical movement. Available with five different head options as standard, they are supplied with on-way or two-way ties with safety or fish tail ends. Ties should be spaced at a minimum of 150mm and at least two ties per stem. This product is manufacture to suit customers requirements, and can be manufactured in galvanized mild steel of from high quality stainless steel.
Product Code
Size (mm)
Wall Width (mm)

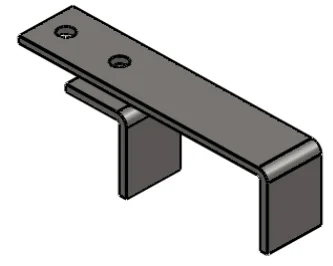

FHR
40x5x200
100/140
