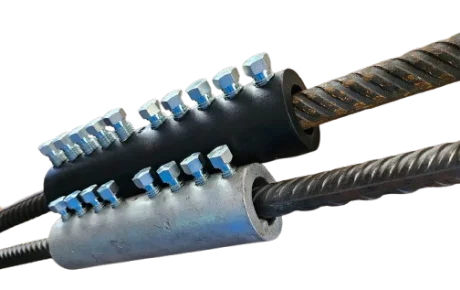

Mechanical Rebar Splicing System
Rebar and Slab extension
Product Code | Rebar size diam. | Outside diam. | Length |
MRS12 | 12 | 32 | 162 |
MRS16 | 16 | 40 | 197 |
MRS20 | 20 | 45 | 222 |
MRS25 | 25 | 56 | 287 |
MRS32 | 32 | 63 | 300 |
MRS40 | 40 | 89 | 400 |
Fully galvanised option available

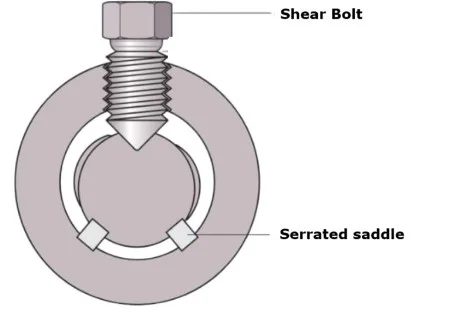

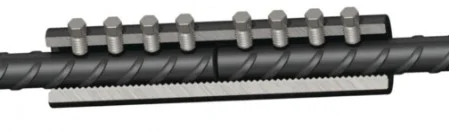

System provides a simple, quick, cost effective mechanical method for splicing or connecting rebar in tension and/or compression applications. Couplers may be used with plain or deformed bars. Couplers utilize lock-shear bolts to mechanically splice with the rebar. The heads of the lock-shear bolts are designed to shear off at a prescribed torque in order to accomplish proper installation. Eliminates bar threading and/or special bar end treatment , No special installation equipment required.
